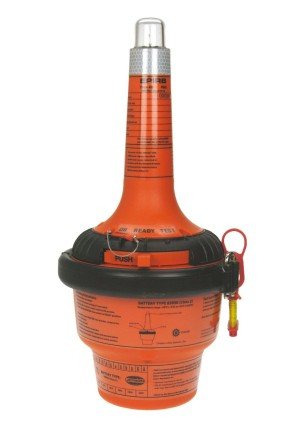

An Emergency Position Indicating Radio Beacon or EPIRB is a safety device carried by a vessel to alert search and rescue services and allow them to quickly locate you in the event of an emergency. It does this by transmitting a coded message on the 406 MHz distress frequency via satellite and earth stations to the nearest rescue coordination centre.
An EPIRB usually works on 406/121.5 MHZ and can be manually or automatically activated and some models are also water activated.
121.5/243 MHz EPIRBs
The International Cospas-Sarsat System ceased satellite processing of 121.5/243 MHz beacons on 1 February 2009. Although Emergency Locator Transmitters used by aircraft may still be used, alerts from these devices or from 121.5/243 MHz EPIRBs will no longer be acted upon unless independently confirmed by two independent non-satellite sources.
The International Cospas-Sarsat System ceased satellite processing of 121.5/243 MHz beacons on 1 February 2009. Although Emergency Locator Transmitters used by aircraft may still be used, alerts from these devices or from 121.5/243 MHz EPIRBs will no longer be acted upon unless independently confirmed by two independent non-satellite sources.
406 MHz EPIRBs

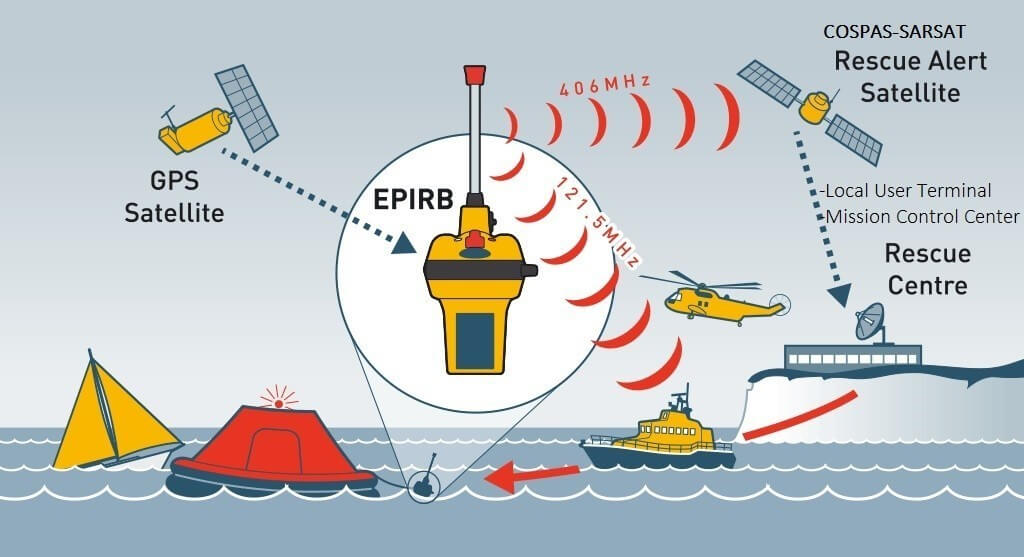

The 406 MHz EPIRB was designed to operate with satellites.The signal frequency (406 MHz) has been designated internationally for use only for distress. Other communications and interference, such as on 121.5 MHz, is not allowed on this frequency. Its signal allows a satellite local user terminal to accurately locate the EPIRB (much more accurately — 2 to 5 km vice 25 km — than 121.5/243 MHz devices), and identify the vessel (the signal is encoded with the vessel’s identity) anywhere in the world (there is no range limitation). These devices are detectable not only by COSPAS-SARSAT satellites which are polar orbiting but also by geostationary GOES weather satellites. EPIRBs detected by the GEOSTAR system, consisting of GOES and other geostationary satellites, send rescue authorities an instant alert, but without location information unless the EPIRB is equipped with an integral GPS receiver. EPIRBs detected by COSPAS-SARSAT (e.g. TIROS-N) satellites provide rescue authorities with the location of distress, but the location and sometimes alerting may be delayed as much as an hour or two. Although these EPIRBs also include a low power 121.5 MHz homing signal, homing on the more powerful 406 MHz frequency has proven to be a significant aid to search and rescue aircraft.
A new type of 406 MHz EPIRB, having an integral GPS navigation receiver, became available in 1998. This EPIRB will send accurate location as well as identification information to rescue authorities immediately upon activation through both geostationary (GEOSAR) and polar orbiting satellites.
The major advantage of the 406 MHz low earth orbit system is the provision of global Earth coverage using a limited number of the polar-orbiting satellite. Coverage is not continuous, however, and it may take up to a couple of hours for an EPIRB alert to be received. To overcome this limitation, COSPAS-SARSAT has 406 MHz EPIRB repeaters aboard several geostationary satellites.
Testing EPIRBs
406 MHz EPIRBs can be tested through its self-test function, which is an integral part of the device. Testing a 406 MHz EPIRB by allowing it to radiate outside such a container is illegal.
An Emergency position indicating radio beacon has the following features:
- Emitting two types of distress signals: 406.028 MHz and 121.5 MHz
- The EPIRB main unit attached to the automatic release bracket is automatically released within water depth
4 meters and sends two types of distress signals. - After release from the automatic release bracket, the EPIRB main unit starts to send distress signals upon
sensing water. If the EPIRB main unit is removed from the automatic release bracket on board the ship by
mistake, it will send no distress signal. - Manual activation to send distress signal is possible by turning selector switch ON.
The emitting of the 406.028 MHz distress signal starts 50 seconds after the power was turned on and then
the 0.44-second distress signal is repeatedly sent at 50-second intervals for 48 or more hours.
This unit normally operates even if it is dropped from the 20 meters height on the surface of the sea.
In Case of False Activation on EPIRB:
Please take the following measures at once when you notice the transmission of distress signal other than
the emergency disaster.
a) Stop the transmission of the distress signal.
b) Report followings to the maritime safety agency.
- Ship name, ship type, nationality
- EPIRB’S maritime ID
- Location of emission (where emission was stopped) and time
Cause of emission - EPIRB’s model, manufacturing number and date
EPIRB – PERFORMANCE STANDARDS (406Mhz)
