Types of Knots, Bends and Hitches used at sea

Knots, bends and hitches

1. Overhand knot: It is used for temporary whipping and preventing the rope unreeving from the block and provides the foothold for the life line.

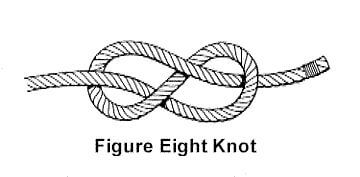

2. Figure of 8 knot: Provide foothold on the lifeline of the lifeboat davit and with the keel grab line and prevent the rope from unreeving patent log with the log line.

Figure 8 Knot



3. Reef knot: It is used to the reef point which is used for shortening the sail.it is also used to tie a bundle with the single rope. The reef knot is also used to join two ropes of equal size.

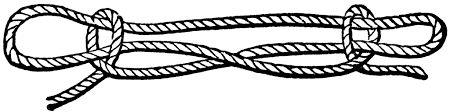

4. Sheep shank: Used for temporary shortening a rope or strengthening the damaged part of the rope. It is also used for providing a hand grip on the keel grab lines.Image result for sheep shank

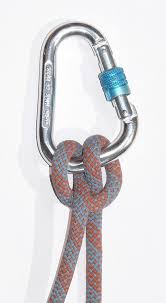

5. Running bowline: It is used for making a running noose at the end of the rope.

Image result for running bowline



6. Bowline on the bight: May be used in an emergency. It can be used to lower a man over the ship side. Put the smaller bight under the arms and put the longer one under the thighs.



7. Single sheet bend/double sheet bend: Used to join two rope of the same size and also to be used to tying the sheets with the clew of a sail.

Image result for Single sheet bend            Image result for double sheet bend

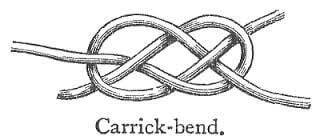

8. Carrick bend: It is used to join two hawsers together when the joint has to pass over the warping drum.



9. Bucket hitch/fisherman bend: Used for Tying a rope to the handle of a bucket in small craft it is used with the anchor ring.

Related Article:   How do you make out if the Anchor is dragging?

Image result for fisherman bend



10. Half hitch: It is used as a part of the other hitches.

Image result for half hitch

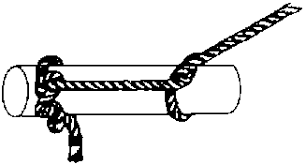

11. Rolling hitch: It is used for securing a small size rope under strain or to a spar.

Image result for rolling hitch



12. Round turn and two half hitches: It is used to secure a rope to a ring or a spar. It never jams.

Image result for Round turn and two half hitches



13. Clove hitch: It is used to secure a rope to a spar or guard-rail or with the similar fittings.

Image result for clove hitch



14. Timber hitch: It is used for securing the end of a rope to a log or spar when towing and lifting.

Image result for Timber hitch



15. Marlinespike hitch: It is used for hitching a rope to a marline spike or similar object.

Image result for marlin spike hitch



16. Timber hitch and half hitch: It is used for lowering a spar vertically up or down through a narrow opening such as man hold or towing a log stern.

Image result for Timber hitch and half hitch



17. Black wall hitch: It is used for hitching a rope quickly to the hook but they are not reliable. They are normally used when the rope and hooks are of the same size:



18. Double black wall hitch: It is used when the rope and hooks are of different size.



19. Cat’s paw: It is used for shortening a rope sling.



20. Stage hitch: For working over side paint work, stages have to be rigged. A stage is a strong thick plank of wood, at least 43 cms in breadth with two cross pieces nailed at the right angles are called harm. Two lengths of tested manila rope (20mm diameter) are used with the stage.

Related Article:   Guidelines on Working aloft or Overside on Ships
